MOQ: | 1 Unit |
Delivery Period: | 8-10 months |
Payment Method: | T/T 30% advance payment |
Supply Capacity: | 1 Unit 8 months |

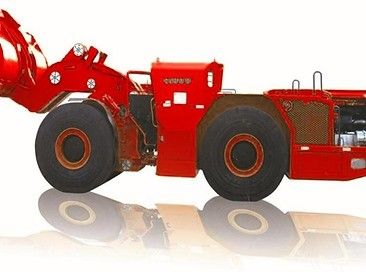

WJ-6A is a type of underground trackless diesel scraper with a bucket volume of 6m2 and a rated load of
14 tons. It is mainly suitable for underground mines of 1 million tons, mainly for shoveling and transporting
loose small pieces of materials after blasting. It can also be used in railway, road and water tunnels.
Suitable for poor ventilation conditions, muddy rough rough road, narrow and low working site, high altitude
occasions.
Main technical features:
1. Central articulated structure, electro-hydraulic proportional steering, small turning radius. > CAN bus
communication technology, real-time monitoring of vehicle running status, fault diagnosis and operation
and maintenance tips.
2. A number of optional configurations to meet the special needs of customers.
Fully enclosed air conditioning cab, with FOPS/ROPS certification, equipped with video surveillance
system to ensure the safety of equipment operation.
Capacities | |
Loading Volume | 6 m³ |
Loading Capacity | 14000 |
Weight and dimensions | |
Dimension | 10339 *2800 *2600 mm |
complete weight | 34450 |
Turning radius(External) | 7343 mm |
Turning radius(Internal) | 3599 mm |
Motion time | |
Boom raising | 7.3 s |
Boom lowering | 5.0 s |
Dumping | 4.0 s |
Speeds(Level/loaded)(8 gear forward and 4 reverse) | |
1st gear | 5.2 km/h |
2nd gear | 8.9 km/h |
3rd gear | 15.1 km/h |
4th gear | 25.8 km/h |
Reverse gear | |
1st gear | 5.2 km/h |
2nd gear | 8.9 km/h |
3rd gear | 15.1 km/h |
4th gear | 25.8 km/h |
Operational capability | |
Gradeability | 25% |
Engine | |
Brand | Scania DC13076A |
Cooling system | Liquid cooled |
Control mode | CAN bus control |
Power | 257 kw @2 100 rpm |
Torque | 1671 Nm @ 1 400 rpm |
Electric system | 24 V |
Emissions | Stage Ⅲ |
Transmission | |
DANA C8602 |
Axles | |
DANA 53R300 | |
Brakes | |
Service breaks are spring applied, hydraulically operated multi disc wet brakes on all wheels, hydraulic release, external forced cooling, manual disengagement. |
