| MOQ: | 1 Unit |
| Delivery Period: | 8-10 months |
| Payment Method: | T/T 30% advance payment |
| Supply Capacity: | 1 Unit 8 months |

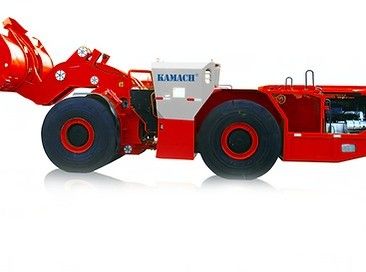

KAMACH WJ-8 underground wheel loader is a high-capacity Load-Haul-Dump (LHD) featuring excellent safety, productivity and reliability. It has a unique fast and efficient way to fill the bucket, compact lightweight design and high capacity. For excellent reliability WJ-8 has integrated KAMACH Intelligent Control system for easy operation and fast maintenance.
| Capacity | |
| Loading Volume | 8 m³ |
| Loading capacity | 20 Ton |
| Maximum traction force | 433 kN |
| Motion time | |
| Boom raising | 7.2 sec |
| Boom lowering | 4.0 sec |
| Dumping | 2.8 sec |
| Weight | |
| Complete weight | 58 500 kgs |
| Total weight | 79 500 kgs |
| Grade ability | 25 % full load, 3 km/h |
| Travelling speed | |
| Travelling speed full load F/R on flat ground | |
| 1st gear | 4.2 km/h |
| 2nd gear | 8.6 km/h |
| 3rd gear | 14.1 km/h |
| 4th gear | 24.5 km/h |
| Machine Size | |
| Length | 11 614 mm |
| Width of bucket | 3 200 mm |
| Width of main frame on wheels | 3 265 mm |
| Height | 2 860±250 mm |
| Off load height | 4 554±250 mm |
| Turning radius (External) | 3402 mm |
| Turning radius (Internal) | 7624 mm |
| Turning angle | 44 ° |
| Engine | |
| Brand | Scania |
| Model | DC16-076A |
| Cooling method | Water-cooled |
| Controlling method | CAN-BUS |
| Power | 368 kW | 1900 rpm |
| Maximum torque output | 2324 Nm |1500 rpm |
| Electric system working voltage | 24 V |
| Emission standard | Tire 3 |
| Drive line | |
| Transmission | |
| Brand | DANA SPICER |
| Model | 15.7 LMTE32427 integrated |
| Drive axles | |
| Brand | OMCI |
| Model | ARG396TN with manual-HYD. lock |
| Axle options | KESSLER+CO D111 with limited SPIN |
| Tire size | 35/65-R33 |
| Tire type | Smooth cut-resistance mining tires |
| Brakes |
| SAHR, spring brake hydraulic release, fully enclosed multiple wet discs at each wheel end, Forced cooling |
Video
|
|
| MOQ: | 1 Unit |
| Delivery Period: | 8-10 months |
| Payment Method: | T/T 30% advance payment |
| Supply Capacity: | 1 Unit 8 months |
KAMACH WJ-8 underground wheel loader is a high-capacity Load-Haul-Dump (LHD) featuring excellent safety, productivity and reliability. It has a unique fast and efficient way to fill the bucket, compact lightweight design and high capacity. For excellent reliability WJ-8 has integrated KAMACH Intelligent Control system for easy operation and fast maintenance.
| Capacity | |
| Loading Volume | 8 m³ |
| Loading capacity | 20 Ton |
| Maximum traction force | 433 kN |
| Motion time | |
| Boom raising | 7.2 sec |
| Boom lowering | 4.0 sec |
| Dumping | 2.8 sec |
| Weight | |
| Complete weight | 58 500 kgs |
| Total weight | 79 500 kgs |
| Grade ability | 25 % full load, 3 km/h |
| Travelling speed | |
| Travelling speed full load F/R on flat ground | |
| 1st gear | 4.2 km/h |
| 2nd gear | 8.6 km/h |
| 3rd gear | 14.1 km/h |
| 4th gear | 24.5 km/h |
| Machine Size | |
| Length | 11 614 mm |
| Width of bucket | 3 200 mm |
| Width of main frame on wheels | 3 265 mm |
| Height | 2 860±250 mm |
| Off load height | 4 554±250 mm |
| Turning radius (External) | 3402 mm |
| Turning radius (Internal) | 7624 mm |
| Turning angle | 44 ° |
| Engine | |
| Brand | Scania |
| Model | DC16-076A |
| Cooling method | Water-cooled |
| Controlling method | CAN-BUS |
| Power | 368 kW | 1900 rpm |
| Maximum torque output | 2324 Nm |1500 rpm |
| Electric system working voltage | 24 V |
| Emission standard | Tire 3 |
| Drive line | |
| Transmission | |
| Brand | DANA SPICER |
| Model | 15.7 LMTE32427 integrated |
| Drive axles | |
| Brand | OMCI |
| Model | ARG396TN with manual-HYD. lock |
| Axle options | KESSLER+CO D111 with limited SPIN |
| Tire size | 35/65-R33 |
| Tire type | Smooth cut-resistance mining tires |
| Brakes |
| SAHR, spring brake hydraulic release, fully enclosed multiple wet discs at each wheel end, Forced cooling |
