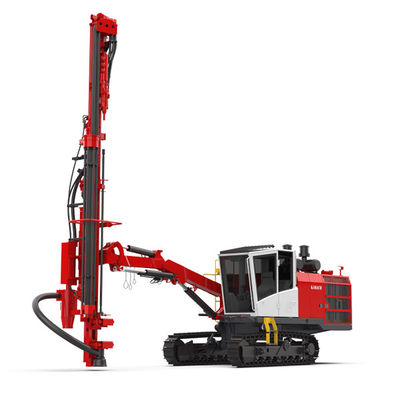

KD400 All In One DTH Drilling Equipment 90mm - 130mm Range Low Energy Consumption

KD400 All In One DTH Drilling Equipment 90mm - 130mm Range Low Energy Consumption

MOQ: 1 Unit
Delivery Period: 3-6 Month
Payment Method: T/T 30% advance payment
Supply Capacity: 1 Unit 3 Month
Detail Information
Place of Origin
China
Brand Name
kamach
Certification
CE,EAC
Model Number
KD400
Drilling Range:
90-130 Mm
Impactor:
3.5, 4
Drill Rod Diameter:
76
Drill Rod Length:
4m*7
Max Hole Depth:
28 M
Air Compressor Working Pressure:
20 Bar
Displacement:
17.5 M3/min
Engine:
Cummins
Model:
QSC8.3-C260-30
Power:
194/2200 Kw/rpm
Fuel Tank:
450 L
Lifting Angle:
50~-20 Deg
Oscillate Angle:
L20 R32
Traveling Speed:
3.2 Km/h
Highlight:

DTH Drilling Equipment 90mm

,

DTH Drilling Equipment 130mm

Product Description

All-in-one DTH drill, built for high productivity and green intelligent drilling and blasting
The series of drills features a diameter of 90-130mm and a max drilling depth of 28m.
Capable of satisfying the needs of drilling vertical, inclined and horizontal holes in arious geological conditions, with high drilling efficiency, low energy consumption and environmental protection. Unique one-touch switching between DTH and cutting, soft rock/ hard rock combined in one machine, expanding the range of application, reducing construction cost and improving construction efficiency.
