Main parameter
External Dimensions (L x W x H)	11500 x 2500 x 3700 mm
Weight	15 800 kg

Pumping system
Motor Power	55 kw
Rated Spaying Volume	26 m³/h
Concrete Pump Cylinder Diameter	φ 160 mm
Nozzle Diameter	φ 50 mm
Operating Mode	Wireless remote control with 30-meter wired remote control as backup
Control Mode	Controller
Maximum Aggregate Size for Spraying	⌀ 16 mm
Output Pressure	7.5 Mpa
System Pressure	21 Mpa

Chassis
Travelling Mode	Wheeled
Diesel Engine Power	160 Kw
Fuel Tank Capacity	200 L
Drive Type	Two-Wheel Drive (Optional 4WD)
Minumum Turning Radius	9 m
Wheelbase	5250 mm
Travelling speed	90 km/h
Grade ability	25%
Ground clearance	300 mm
Braking Distance	10 m

Tags:

Underground Passenger Truck,

Robotic Shotcrete Machine,

Fuel Transporter

HPS2515A Shotcrete Robot

Contact Now

GHP40 Tunneling Shotcrete Robot

Contact Now

SC-3017 Tunneling Shotcrete Robot

Contact Now

UK-6RU 18 people Heavy Duty Underground Personnel Carrier Battery Powered

Contact Now

UK-6YG Fuel Transporter Explosive Loading Truck 84-119kW / 2300rpm Max power

Contact Now

UK10-LPT Multipurpose Tunnel Auxiliary Vehicle Pipe Handler

Contact Now

UK-RU12 Tunnel Auxiliary Vehicle Heavy Duty Underground Passenger Truck

Contact Now

KMR500 Tunnel Auxiliary Vehicle Shotcrete Robot High Efficiency Safety And Reliability

Contact Now

Multi Function Shotecrete Robot Metal Mines Tunneling Robotic Shotcrete Machine

Contact Now

ZQ-26 Mining Pneumatic Rock Shovel Front Loaded Back Unloaded For Curve Tunneling

Contact Now

Z-20C Electric Rock Shovel 0.2m3 capacity 40m3/h productivity Low Noise And Vibration

Contact Now

PRODUCTS DETAILS

Products

Rotary Blasthole Drill Rig

Surface Drill Rig

Underground Drill Rig

Rock Bolting Rig

Production Drill Rig

Raise Boring Equipment

Underground Wheel Loader

Underground Mine Truck

Crawler Mucking Loader

Road Header Machine

Tunnel Auxiliary Vehicle

Steel Wear Parts

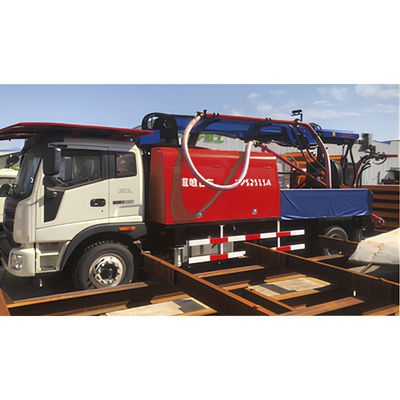

HPS2515A Shotcrete Robot
