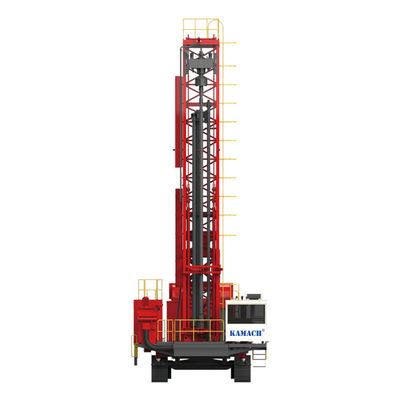

KY-250E Rotary Blasthole Drilling Rig 270KN Axial Pressure 9140mm Drill Rod Length

KY-250E Rotary Blasthole Drilling Rig 270KN Axial Pressure 9140mm Drill Rod Length

MOQ: 1 Unit
Delivery Period: 8-10 months
Payment Method: T/T 30% advance payment
Supply Capacity: 1 Unit 8 months
Detail Information
Place of Origin
China
Brand Name
kamach
Certification
CE,EAC
Model Number
KY-250E
DTH Bore Diameter:
Φ 200-250 Mm
Axial Pressure:
270 KN
Drill Rod Length:
9140 Mm
Max. Bore Depth:
48 M
Power Of Motor:
160 Kw/ 380 V
Power Type:
Electric
Max Propulsion Force:
220 KN
Rotate Torque:
11.8 KNm
Air Compressor Wroking Pressure:
7.5 Bar
Gross Weight:
65 Tons
Dimensions:
16.5*5.9*6.6 M (Mast Horizontal)
Highlight:

Blasthole Drilling Rig 270KN

,

Blasthole Drilling Rig 9140mm

Product Description

Rotory drill with tricone bit for open pit mine

◆ High axial pressure, high torque, high rotating speed and large aperture provide excellent productivity for mining operation.
◆ Electric/ diesel dual-power system, optional high/ low pressure or low-pressure air compressor, which is energy-saving and low pollution.
◆ Electro-hydraulic ratio control system with variable constant power is adopted to match operation parameters according to strata movement.
◆ Equipped with high reliable three-point floating leveling chassis and high-strength truss drill tower.
◆ Combined gearwheel rotation and DTH impact modes for wide adaptability of strata.
