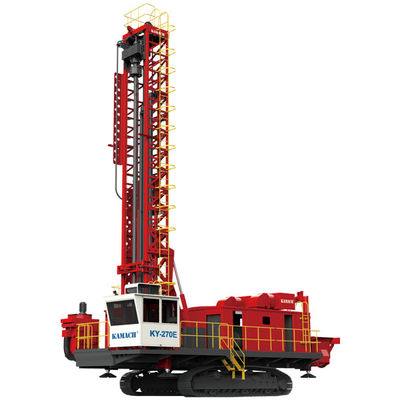

KY-270E Hydraulic Rotary Blasthole Drill Rig High Rotating Speed CE EAC Approved

KY-270E Hydraulic Rotary Blasthole Drill Rig High Rotating Speed CE EAC Approved

MOQ: 1 Unit
Delivery Period: 8-10 months
Payment Method: T/T 30% advance payment
Supply Capacity: 1 Unit 8 months
Detail Information
Place of Origin
China
Brand Name
kamach
Certification
CE,EAC
Model Number
KY-270E
DTH Bore Diameter:
Φ 200-270 Mm
Drill Rod Length:
9140mm
Max. Bore Depth:
48 M
Air Compressor Wroking Pressure:
5 Bar
Power Of Motor:
160 Kw/ 380 V
Power Type:
Electric
Axial Pressure:
400 KN
Max Propulsion Force:
350 KN
Rotate Torque:
13.8 KNm
Gross Weight:
90 Tons
Dimensions:
14.5*6.6*17.5 M (Mast Erect)
Highlight:

Hydraulic Rotary Blasthole Drill Rig

,

EAC Rotary Blasthole Drill Rig

Product Description

Rotory drill with tricone bit for open pit mine

◆ High axial pressure, high torque, high rotating speed and large aperture provide excellent productivity for mining operation.
◆ Electric/ diesel dual-power system, optional high/ low pressure or low-pressure air compressor, which is energy-saving and low pollution.
◆ Electro-hydraulic ratio control system with variable constant power is adopted to match operation parameters according to strata movement.
◆ Equipped with high reliable three-point floating leveling chassis and high-strength truss drill tower.
◆ Combined gearwheel rotation and DTH impact modes for wide adaptability of strata.
