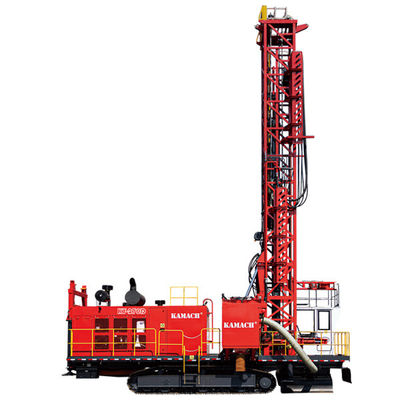

KY-270D Rotary Blasthole Drilling Rig With Tritone For Open Pit Mine

KY-270D Rotary Blasthole Drilling Rig With Tritone For Open Pit Mine

MOQ: 1 Unit
Delivery Period: 8-10 months
Payment Method: T/T 30% advance payment
Supply Capacity: 1 Unit 8 months
Detail Information
Place of Origin
China
Brand Name
kamach
Certification
CE,EAC
Model Number
KY-270D
Drilling Method:
DTH, Rotary
Power Type:
Diese
DTH Bore Diameter:
φ216-270
Max. Bore Depth:
48 M
Drill Rod Length:
9140 Mm
Air Compressor Working Pressure:
8 Bar
Hydraulic Power:
Caterpillar Diesel C27
Fuel Tank Capacity:
2500 L
Propulsion Force:
0-350 KN
Rotate Torque:
0-13.8 KNm
Dimensions:
14.5*6.6*17.5 M (Mast Erect)
Highlight:

Rotary Blasthole Drilling Rig

,

Mine Blasthole Drilling Rig

Product Description

Rotory drill with tritone bit for open pit mine

◆ High axial pressure, high torque, high rotating speed and large aperture provide excellent productivity for mining operation.
◆ Electric/ diesel dual-power system, optional high/ low pressure or low-pressure air compressor, which is energy-saving and low pollution.
◆ Electro-hydraulic ratio control system with variable constant power is adopted to match operation parameters according to strata movement.
◆ Equipped with high reliable three-point floating leveling chassis and high-strength truss drill tower.
◆ Combined gearwheel rotation and DTH impact modes for wide adaptability of strata.
