UK-45 Hydraulic Underground Mine Truck Central Articulated 45 Tonne Load Capacity

UK-45 Hydraulic Underground Mine Truck Central Articulated 45 Tonne Load Capacity

MOQ: 1 Unit
Payment Method: T/T 30% advance payment
Detail Information
Place of Origin
China
Brand Name
kamach
Certification
CE,EAC
Model Number
UK-45
Maximum Payload Capacity:
45 000 Kg
Standard Dump Box:
22.0 M³
Engine:
Scania DC16 076A
Axles:
DANA 53R300
Highlight:

Hydraulic Underground Mine Truck

,

Underground Mine Truck 45 Tonne

,

Hydraulic Underground Articulated Truck

Product Description

Underground truck with 45-tonne load capacity


Vehicle Structure:

• High-quality carbon structural steel is used, with parts precisely cut by CNC, welded with gas protection to enhance strength, and finished with shot blasting for a reliable surface.

• Dump box is equipped with a fall protection system to ensure safety.

• A steering lock device is included for safety transportation and towing.

• Oscillated angle ±8˚



Operating System:

• The central articulated body offers good passability.

• Ergonomically designed with a cushioned seat and safety belt to protect the driver.

• A reverse camera system is installed to improve safety during reversing.



Power System:

• Powered by a water-cooled, electronically injected, turbocharged diesel engine that provides strong power, low fuel consumption, and quiet exhaust, with emissions compliant with Euro III standards.

• Equipped with a torque converter, transmission, and drive axle from Dana, ensuring high reliability.



Hydraulic System:

• The steering system uses pilot hydraulic control technology, allowing for flexible steering.


• The dumper is controlled by electro-hydraulic proportional control technology, with an electric lever for easy and lightweight operation.

• Major hydraulic components are from well-known domestic and international brands for reliable performance.

• The vehicle is fitted with an integrated multi-disk wet brake system that requires no adjustment for wear.

• Spring brakes with hydraulic release ensure reliable braking performance.



Capacities
Maximum payload capacity 45 000 kg
Standard dump box 22.0 m³

Weight and dimensions
Total operating weight 42 500 kg
Total loaded weight 87 500 kg
Dimension 10796 *3080 *2927 mm

Speeds(Level/loaded)(8 gear forward and 4 reverse)
1st gear 4.6 km/h
2nd gear 6.0 km/h
3rd gear 8.1 km/h
4th gear 10.5 km/h
5th gear 13.7 km/h
6th gear 17.8 km/h
7th gear 23.5 km/h
8th gear 30.0 km/h
Reverse gear
1st gear 4.7 km/h
2nd gear 6.1 km/h
3rd gear 8.2 km/h
4th gear 10.7 km/h

Operational capability
Gradeability 25%, 3.3 km/h
Maximum traction 446 KN


Engine
Diesel engine Scania DC16 076A
Cooling system Liquid cooled
Control mode CAN bus control, with control unit(ECU)and electronic throttle pedal
Output 425 kw (578 hp ) @ 1900 rpm
Torque 2450 Nm @ 1 425 rpm
Electric system 24 V
Emissions Stage Ⅲ

Converter
DANA CL9672

Transmission
DANA 8821H
Electric shifting system, automated and manual transmission(AMT)

Axles
DANA 53R300
Rigid planetary gear, multi-disc wet breakes on all wheels, equipped with standard differential.

Tires
Tire size 29.5R25

Steering hydraulics
Fully hydraulic, center articulated, power steering with two double acting cylinders.
Gradient to be overcome (deg) ± 4 4 ˚
Outer turning radius 9027 ± 250mm
Inner turning radius 4879 ± 250mm
Work pressure 180 bar
Response time 5.0 sec

Dump box hydraulics
Two cylinders, electro-hydraulic proportional control system, joystick operation.

Work pressure 230 bar
Lifting time 14.0 sec
Descent time 7.5 sec

Brakes
Service breaks are spring applied, hydraulically operated multi disc wet brakes on all wheels,
hydraulic release, external forced cooling, manual disengagement.
Braking mode POSI-STOP

Electrical equipment
DC generator 28V, 150A
Batteries 2 x 12V, 195 Ah
Stater 24 V, 6 kw
Driving lights 6 x 48W LED

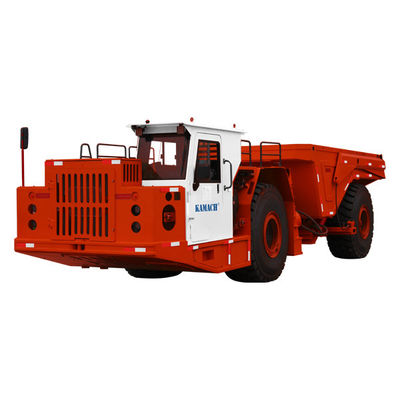

UK-45 Hydraulic Underground Mine Truck Central Articulated 45 Tonne Load Capacity 0
