CYTC76 Medium Long Hole Production Drill Rig Jumbo Drilling Machine Hydraulic

Products

Steel Wear Parts

latin@kamach.com

+573053562629

Contact Now

CYTC76 Medium Long Hole Production Drill Rig Jumbo Drilling Machine Hydraulic

MOQ:	1 Unit
Delivery Period:	3-6 Month
Payment Method:	T/T 30% advance payment
Supply Capacity:	1 Unit 3 Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

kamach

Certification

CE,EAC

Model Number

CYTC76

Hole Diameter:

φ64-φ89 Mm

Hole Depth:

Drill Rod Length:

1220(T38) Mm

Rod Capacity:

Cable Length, Max:

100 M

Weight:

14500±400 Kg

Min. Ground Clearance:

≥300 Mm

Turning Radius:

Inner 3200±100 Mm

Impact Power:

22 Kw

Impact Frequency:

55 Hz

Pressure:

18-20 Mpa

Rated Torque:

1000 N·m

Feed Force:

15 KN

Highlight:

Medium Production Drill Rig

Long Hole Production Drill Rig

Jumbo Drilling Machine Hydraulic

Product Description

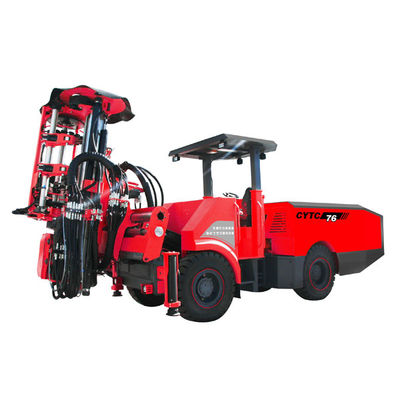

CYTC76 is a medium - sized long hole production drilling jumbo . With a hole ranges from 64 to 89mm in diameter , and a 27+1 rod handler for drilling up to 35m hole depth , it is suitable to drill vertical or tilted fan - shaped holes or 1.5m parallel holes (3m extendable ). Thanks its powerful hydraulic drifter and Kamach's EHPCS Operating Control System , the machine can supply customer a precise positioning, high productivity and quality drilling solution for mining production underground.

Tags:

Products

MOQ:	1 Unit
Delivery Period:	3-6 Month
Payment Method:	T/T 30% advance payment
Supply Capacity:	1 Unit 3 Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

kamach

Certification

CE,EAC

Model Number

CYTC76

Hole Diameter:

φ64-φ89 Mm

Hole Depth:

35 M

Drill Rod Length:

1220(T38) Mm

Rod Capacity:

27+1

Cable Length, Max:

100 M

Weight:

14500±400 Kg

Min. Ground Clearance:

≥300 Mm

Turning Radius:

Inner 3200±100 Mm

Impact Power:

22 Kw

Impact Frequency:

55 Hz

Pressure:

18-20 Mpa

Rated Torque:

1000 N·m

Feed Force:

15 KN

Minimum Order Quantity:

1 Unit

Delivery Time:

3-6 Month

Payment Terms:

T/T 30% advance payment

Supply Ability:

1 Unit 3 Month

Highlight

Medium Production Drill Rig

Long Hole Production Drill Rig

Jumbo Drilling Machine Hydraulic

Product Description
