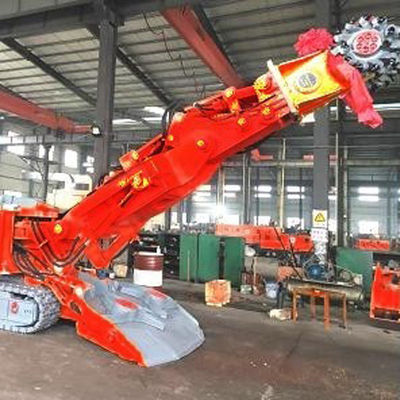

EBH160 160kW Cantilever Road Header Machine Pilot Control Modular Design

EBH160 160kW Cantilever Road Header Machine Pilot Control Modular Design

MOQ: 1 Unit
Delivery Period: 3-6 Month
Payment Method: T/T 30% advance payment
Supply Capacity: 1 Unit 3 Month
Detail Information
Place of Origin
China
Brand Name
kamach
Certification
CE,EAC
Model Number
EBH160
Empty Weight:
32 Metric Ton
Overall Dimensions:
10250×2800 × 2050 Mm
Total Power Installed:
160kW
Maximum Break-down Weight Of Chassis:
≤3500 Mm
Maximum Break-down Size Of Chassis:
3130 ×960 × 1320 Mm
Feeder Width:
2 800 Mm
Electricity Needed:
660/1140 VAC | 50/60Hz
Rate Hydraulic Pressure:
32 MPa
Operate Method:
Pilot Control
Oil Cooling Method:
Liquid Cooling And Aircooling
Oil Tank Volume:
≥ 280
Ground Clearance:
250 Mm
M Ounting Method:
Horizontal Axis
Highlight:

Cantilever Road Header Machine

,

Road Header Machine Pilot control

,

Roadheader Tunneling Machine

Product Description

EBH160 cantilever road header has a modular design that makes it compact in size and easy to assemble. It has a cutting head that can be equipped with international brands. The cutting head can rotate 360 degrees and cut in different directions and angles.

It has a high efficiency feature that makes it stand out from other machines. It has a single electric motor that drives the road header through a transfer box, reducing the energy consumption and maintenance costs. It also has a fold-able cutting arm that helps collecting the gravels and loading them onto the conveyor belt.

It’s a multifunctional,efficient and durable road header that can handle any terrain and cutting.It will help you achieve a high productivity and low operational cost.
