150m Drilling Depth Mine Raise Boring Equipment AFY1200/ 30/ 150

150m Drilling Depth Mine Raise Boring Equipment AFY1200/ 30/ 150

MOQ: 1 Unit
Delivery Period: 8-10 months
Payment Method: T/T 30% advance payment
Supply Capacity: 1 Unit 8 months
Detail Information
Place of Origin
China
Brand Name
kamach
Certification
CE,EAC
Model Number
AFY1200/ 30/ 150
Diameter Of Pilot Hole:
244 Mm
Broaching Diameter:
1200
Drilling Depth:
150 M
Rotational Speed Of Shaft Extension:
5-33 Rpm
Rated Torque:
15 KN. M
Maximum Torque:
30 KN. M
Maximum Thrust:
350 KN
Maximum Tension Of Broaching:
850 KN
Drilling Angle:
60-90 ⁰
Weight Of Main Machine:
6 T
Handing Dimension Of Main Machine:
2290*1110*1430 Mm
Working Dimension Of Main Machine:
2977*1422*3277 Mm
Drill Rod Diameter Effective Length:
ø176×1000 ø 182× 1000 Mm
Motor Power:
66kw
Highlight:

150m Raise Boring Equipment

,

Mine Raise Boring Equipment

Product Description

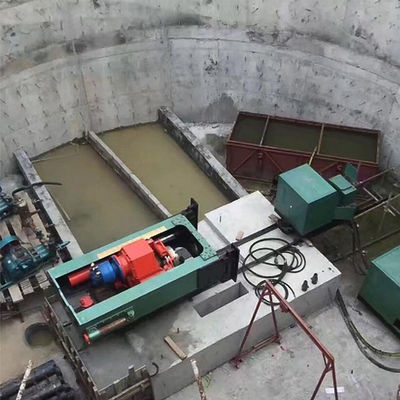

AFY1200/30/150 raise boring equipment has a drilling depth of 150m, which makes it suitable for different mining

projects. It can drill coal mine shafts, blind shafts, winze, ventilation shafts, and more. It can be applied in the fields

of metallurgy, chemical industry, and other industries that require shafts and holes. It has a compact structure,

a new design, a high degree of mechanization, a convenient transportation, and a simple operation.

It can work in an explosive environment and can satisfy different construction requirements. It’s a double ball hydraulic

drive, which enhances the drilling speed and safety. It also has a self-locking function that prevents the drill rod from

falling off during the drilling process.It is powerful, reliable, and easy to operate. It can save you time, improve the

quality and safety of your work.
